Project Description

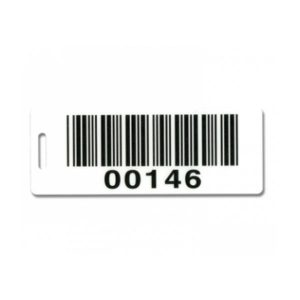

RFID Hang Tag
Idtracon’s RFID Hang Tags are ideal for asset tracking applications on metal or non-metal surfaces that do not allow for attachment directly to the asset.

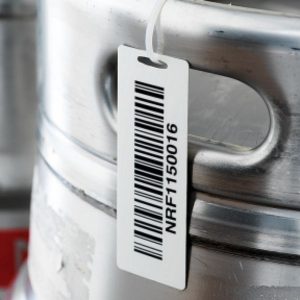

The inlay is completely encapsulated within the tag protecting it from environmental conditions that could have an adverse effect on the performance and life of the RFID tag. Hang tags are attached to the asset using mechanical fasteners (i.e. plastic ties) rather than an adhesive.
Print a registered company logo or instructional information on the second side. You can even print the same variable number or bar code on both sides allowing anyone to see the information from either side of the tag.
Ideal for asset tracking on metal or nonmetal surfaces that do not allow for attachment directly to the asset
Removable and reusable – creates more ROI
Made of durable polyester material
Digital printing process provides for greater print capability with detailed logos or special designs
Meets EPCglobal Gen2 (v 1.2.0) as well as ISO/IEC 18000- 6C:2044/Amd 1:2066 (type C)
Specifications Data
| Material | Polyester |
| Serialization | Bar code and human-readable equivalent is produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbology is Code 128. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs |
| Colors | Standard colors include black, red, yellow, green or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black. |
| Standard Adhesive | Hanging tag |
| Frequency Range | 860-960 MHz |
| Sizes | 120mm x 45mm | 51mm x 38mm |
| Packaging | Shipped in “work-out-of” cartons for convenient application. |
| Shipment | 14 business days |
Asset Tracking
Racks
Tool Tracking
Chemical Test Summary
Chemical Soak Test Results (24 hours): Test of label structure and printed image as well as readability of inlay.
Chemical Test Data
| Test conditions | Result |
| Water | no effect |
| Glass cleaner | no effect |
| Bathroom cleaner | no effect |
| Alcohol | no effect |
| Acetone | Delaminated, inlay unreadable |
| NaOH | no effect |
| Nitric acid | no effect |
Read Range Test Summary
Tag has a read range of 6.0+ metres using Motorola AR400 reader at 24 dbm
