Project Description

Idtracon’s RFID Key Fobs are the ideal identification solution for personnel applications where the tag can be secured to a key chain, etc. Works great in conjunction with our other Access Control
products, i.e. RFID Windshield Tags or Lanyard Badge, for a complete Access Control solution.

These tags attractive graphic’s and excellent performance are outstanding. Made from a variety of durable, permanent materials, the actual construction of the tag protects the tag by sealing it within the layers of durable material. In addition, each tag can be programmed to match the variable information printed on the label.

Click Here to view PDF

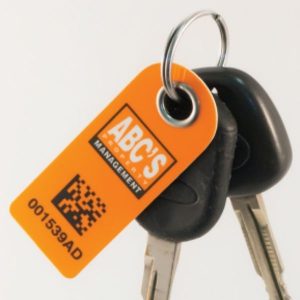

RFID Key Fob 1

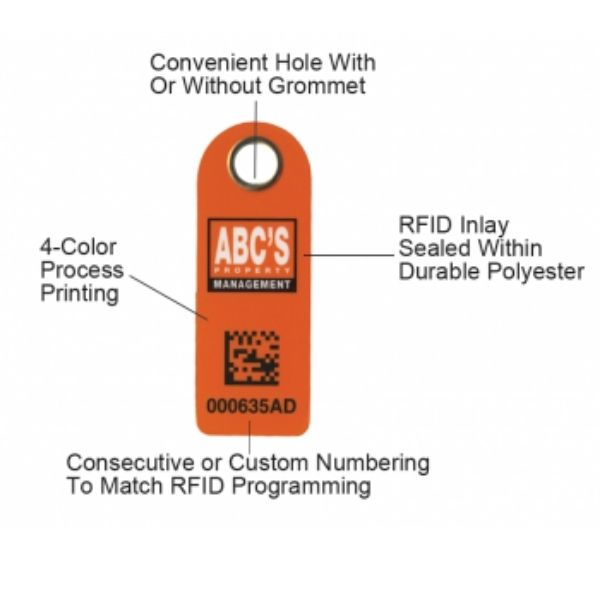

RFID Key Fob 2

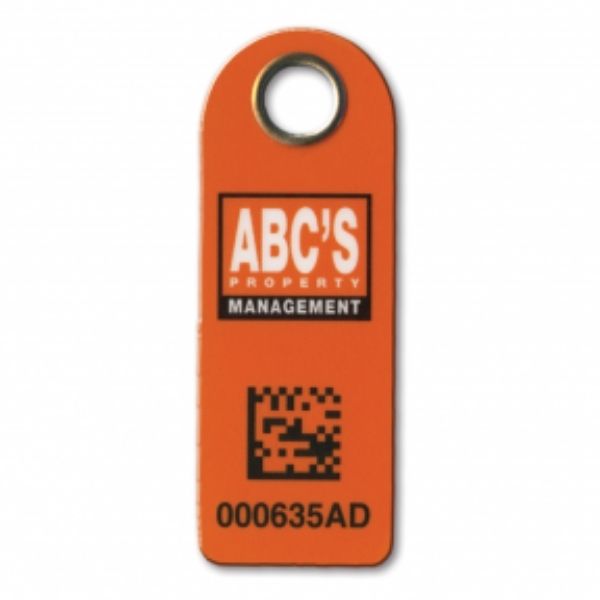

RFID Key Fob 3
RFID Key Fob 1 RFID Key Fob 2 RFID Key Fob 3
  • Stunning graphics! Our subsurface digital printing process ensures crisp details on even the most complex logos for maximum clarity

  • Durable permanent materials, no paper layers

  • Thinner profile, not bulky as thicker options commonly used

  • 100% data verification

  • Two-sided printing available – both constant and variable

  • High frequency (HF) Tags also available

Specification Data

Material Polyester
Serialization Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label Copy The label copy may include block type, stylized type, logos or other designs
Colors Standard colors include black, red, yellow, green, dark blue, purple, orange or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive Hanging tag
Frequency Range UHF = 860-960 MHz; HF = 13.56 MHz
Size 70mm x 25mm with 2mm (5/16″) ID hole
Shipment 14 business days
  • Access Control

  • Asset Tracking

  • Audio Equipment

  • Personnel Identification

Chemical Test Summary

24-hour test of label structure and printed image as well as readability of inlay.

Chemical Test Data

Test conditions Result
Water no effect
Glass cleaner no effect
Bathroom cleaner no effect
Alcohol no effect
Acetone Delaminated, inlay unreadable
NaOH no effect
Nitric acid no effect

Read Range Test Summary

Tag has a read range of up to 3.0 metres using Motorola AR400 portal reader at 24 dbm


Need a custom quote? Let us know and we’ll be happy to put together a custom quote for your tag and label needs.
