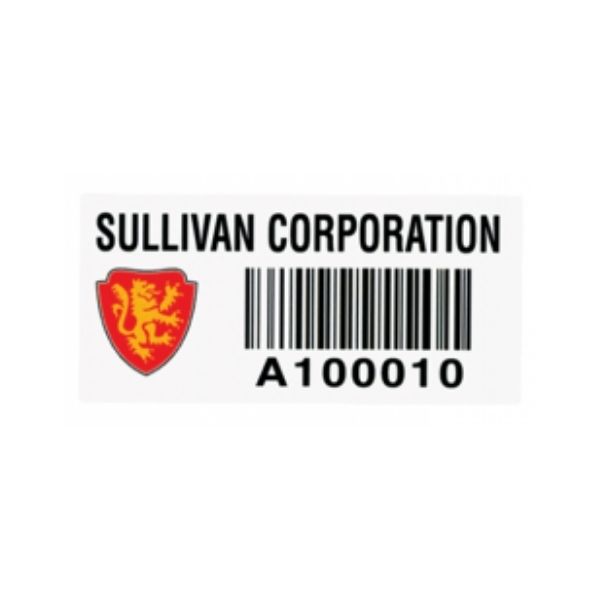

T he closest thing you will find to a “one-sizefits- all” RFID solution! The Universal RFID Tag features an inlay design that offers the lowest profile of any tags in its class – solving a common issue many customers have with other metal mount RFID tags.
This revolutionary product line features surface-independent tags with a patented inlay designed to obtain excellent read range regardless of the surface – metal, plastic, even wood. Custom programming matches the printed bar code information allowing you the option of using both tracking technologies.

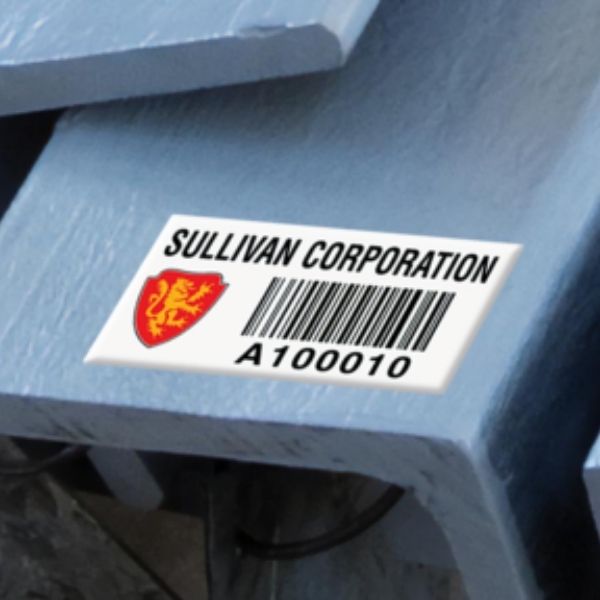

Patented inlay design obtains excellent read range regard less of surface – metal, plastic, even wood
Lowest profile in its class makes label unobtrusive
Subsurface printing on durable polyester protects printed copy against moderate solvents and caustics/acids

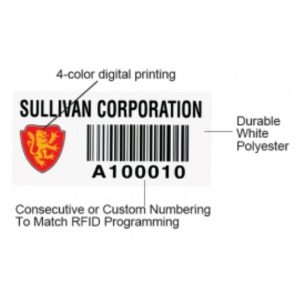

Digital printing process provides for greater print capability with detailed logos or special designs
RFID temperature sensor tag product information
| Material | .002” thick polyester label adhered to proprietary inlay wrapped around 1/16” closed cell foam. Total product thickness is approximately .085” |
| Serialization | Barcode and human-readable equivalent are produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning.Code 39 is the standard symbology with a range of 2.7 to 5.4 CPI (characters per inch). Optional symbology is Code 128. |
| Label Copy | The label copy may include block type, stylized type, logos or other designs. All copy, block type, stylized type, logos, designs, and bar code are subsurface printed. This unique process provides moderate resistance to solvents, caustics, acids and abrasion. |
| Colors | Standard colors include black, red, yellow, green, dark blue, orange, purple and blue. Due to contrast needed for the bar code scanner, all bar codes are black. |
| Standard Adhesive | Pressure-sensitive acrylic adhesive |
| Frequency Range | Custom-designed UHF inlay optimized for use at 915 MHz. ( UHF, Class I Gen 2 ) |
| Sizes | 73mm x 35mm |
| Packaging | Produced and shipped in roll form. |
| Shipment | 14 business days |
Asset Tracking
Racks
Returnable Containers
Work-In-Process
Chemical Test Summary
In all cases, after 3 weeks soaking in these chemicals, all the tags and labels responded properly when interrogated with a handheld RFID reader, and all the bar codes except those soaked in acetone were readable with a standard bar code reader.
Chemical Test Data
| Length of immersion |
Water | Glass cleaner | Bathroom cleaner pH 10.0 |
Isop. alcohol 99% |
Acetone 100% | NaOH pH 12.0 | HCI pH 1.0 | Brake Fluid |
| 2 hours | NE | NE | NE | NE | NE | NE | NE | NE |
| 24 hours | NE | NE | NE | NE | When pulled, tag came apart | NE | NE | NE |
| 1 Week | NE | NE | NE | P.S. adhesive softened | When pulled, tag came apart | When pulled, tag came apart | NE | NE |
| 3 Week | NE | NE | NE | When pulled, tag came apart | When pulled, tag came apart | When pulled, tag came apart | NE | NE |
Heat Testing - Product withstood temperatures up to 115°C for short-term (10 minutes) periods. They will withstand temperatures up to 71°C for extended periods (tested for six hours with no degradation). The tests demonstrated that the transponder was not readable at temperatures above 85°C, but resumed function when temperatures were once again reduced below 85°C.
Read Range Test Data (metres)
In many cases the tags read intermittently for longer distances than those indicated, however, the results reported
below were for continuously responding reads.
| Device used | Test results (all at 30 dBm) | |||
| Handheld convergence CS-101 |
Metal | Plastic | Cardboard | Wood |
| Universal RFID asset tag | 8.5 metres | 6.0 metres | 4.5 metres | 4.5 metres |
