Project Description

Do you need to track uniforms, hospital aprons, rental linens or other materials? Metalcraft’s Heat Seal Labels are made of woven polyester and heat-activated adhesive that bonds well to cottons, polyesters, and much more. They even withstand washing and drying cycles!

REQUEST A QUOTE

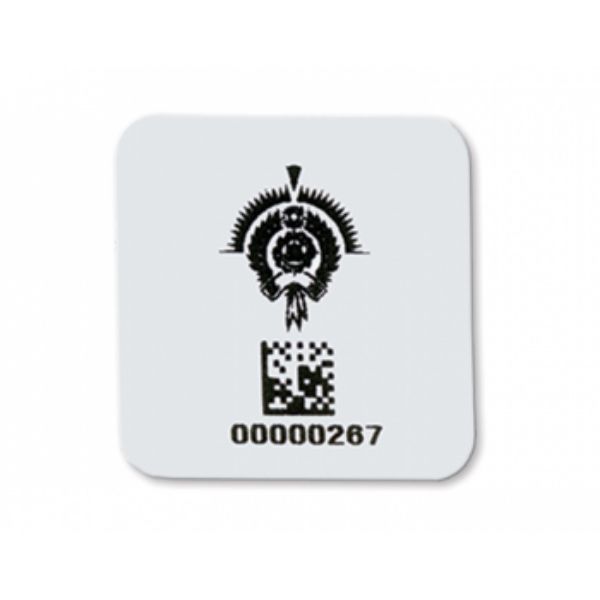

Apparel Heat Seal Labels 1

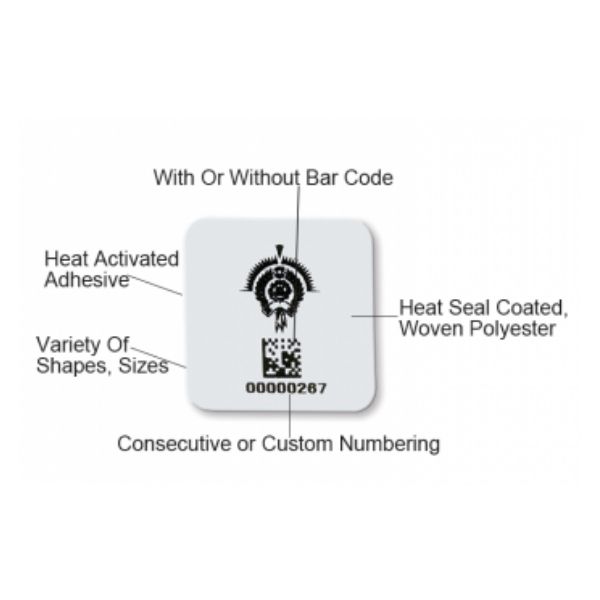

Apparel Heat Seal Labels 2

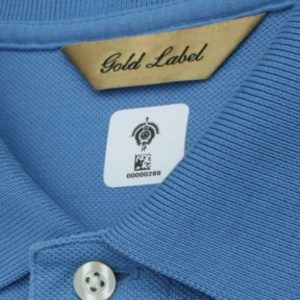

Apparel Heat Seal Labels 3
Apparel Heat Seal Labels 1 Apparel Heat Seal Labels 2 Apparel Heat Seal Labels 3
  • Variety of sizes and shapes available

  • More economical than fabric label options

  • Heat-activated adhesive that bonds well to cottons, polyesters and more

  • Demonstrates excellent wash/dry cleaning resistance

  • Ideal for tracking uniforms, laundry and rental linens

  • Logos and designs available

SPECIFICATIONS DATA

Material Heat seal coated, woven polyester
Bar Code & Serialization All alphanumeric bar codes are printed with a human-readable equivalent. Guaranteed, no skips in your sequence. Code 39 is standard with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbologies include Code 128, I 2 of 5, 2D DataMatrix and QR code. Although this product is primarily marketed as a bar code product, we can produce it with human readable numbers only or unserialized. Call Metalcraft for information on either of these options.
Label Copy The label copy may include block type, stylized type, logos or other designs.
Colors Available in black only
Standard Adhesive Heat-activated adhesive. Recommended application method is 150°C with 20 lbs. of pressure for 3 seconds. We recommend performing your own tests specific to your application as results will vary.
Sizes 13mm diameter circle; 19mm diameter circle; 25mm diameter circle; 25mm x 25mm square
Packaging Produced and shipped in roll form with scrap matrix. Cartons are clearly marked to indicate serial numbers of labels.
Shipment 6 business days
  • Costume Inventory

  • Linen rentals

  • Uniform Tracking

Chemical Test Data

Thermal transfer printed surface of the label was tested in chemical rub tests and submerged in water over a period of 72 hours.
Abrasion and intense cleaning may wear away the label copy after an extended amount of time. Water alone will have no effect on image quality or label adhesion. These tests were conducted for a limited period of time in strict laboratory conditions.
In order to achieve maximum satisfaction we highly recommend that any customer considering use of this product test the labels in the environment in which they will be used.

Temperature Test Data

Five wash/dry cycles with 71°C disinfection process, hydrogen peroxide wash/soak, tumble dry at 71°C. The customer was 100% satisfied with the label image and adhesion and did not see yellowing of the label or embrittlement.

Destructive Test Summary

The product meets AATCC IVA wash test requirements, meets AAFA and OEKE TEX 100 standards for organotin content, and contains no phthalates, heavy metals, dibutyltin, formaldehyde, latex, or skin irritants. Other specs (CPSIA / REACH/RoHS) are available upon request.

Click Here to view PDF
