Project Description

These .016” thick aluminum nameplate offer the greatest flexibility in nameplate design.

AUTOGRAPHS® Nameplates feature UV curable inks and a clear coat that protects against damaging UV rays while screen printing maximizes registration accuracy and resolution allowing for clear, crisp reproduction of company logos and designs.

REQUEST A QUOTE
Metal Nameplates Autographs 1
Metal Nameplates Autographs 2
Metal Nameplates Autographs 4
Metal Nameplates Autographs 3
Metal Nameplates Autographs 1 Metal Nameplates Autographs 2 Metal Nameplates Autographs 4 Metal Nameplates Autographs 3

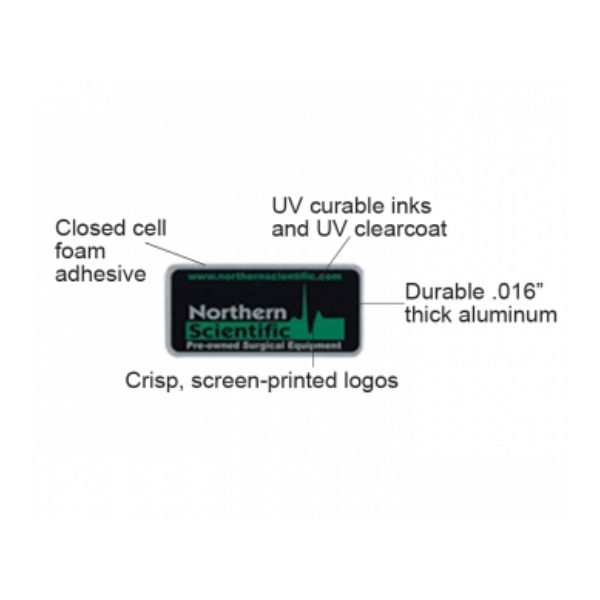

  • UV curable inks and UV clear coat provide protection against damaging UV rays

  • Optional indented black-filled serial numbers available

  • .016” thick aluminum provides rigidity and durability

  • Adhesives specially matched to surface for maximum adhesion and/or optional holes available for mechanical fasteners

  • More than 700 sizes means no extra tooling charge

  • Break-away tab for easier liner removal available on limited sizes

Specifications Data

Material .016” thick anodized aluminum is standard. Optional thicknesses .020”, and .032”.
Serialization Optional indented serial numbers permanently stamped into the aluminum and filled with black enamel. Additional fill colors are available. Serial numbers available in three sizes: 1/8”, 3/16” or 1/4”. Guaranteed no skips in sequence.
Label Copy The printed nameplate copy may include block type, stylized type, logos or other designs.
Colors Choose from our standard colors (red, yellow, blue, green, orange, white, purple, dark blue, black)). The use of one or two colors is standard. Additional color options available. Custom colors also available. Metalcraft color samples available upon request.
Standard Adhesive .0031” thick, closed cell polyethylene foam adhesive that provides excellent surface area adhesion to most surfaces including irregular surfaces; optional adhesives available
Sizes 51mm x 25mm, 38mm x 19mm, 63mm x 19mm, 38mm x 13mm, 76mm x 25mm, 51mm x 16mm, 51mm x 19mm
Holes Optional
Packaging Shipped in “work-out-of” cartons for convenient application. Each carton consists of one or more trays containing sequentially packed nameplates. Both cartons and trays are clearly marked to indicate serial numbers of contents. Pressure-sensitive adhesive orders are shipped with a roller, cleaner, and application instructions. Roller is recommended when applying nameplates.
Shipment 8-10 business days
  • OEM Product Identification

  • Product Branding

  • UL Approved Labeling

  • Work-In-Process

Chemical Test Data

This rating measures readability after being exposed to chemicals listed below for a 24 hour soak. Chemical emergence tests are rated on a scale of 100 to 0: 100 = No Effect 75 = Image blurred 50 = Image scratches off 25 =Image wipes off 0 = Image destroyed

Readability test

Test Conditions Rating
Acetone 100
Isopropyl Alcohol 100
Bathroom cleaner 80
Glass cleaner 100
Sodium hydroxide 0
Hydrochloric acid 100
Nitric acid 100
Brake fluid 100
Water 100

Temperature Test Data

AUTOGRAPHS® are able to withstand intermittent heat exposure to 175°C.

Abrasion Test Data

Nameplate survived more than 1,000 revolutions on Taber Abrader using Calibrase CS-10 wheel with 500g weight.

Label Adhesion Test Data

This rating measures label adhesion after being exposed to chemicals listed below for a 2 hour soak. Label adhesion tests are rated on a scale of 100 to 0: 100 = no effect 75 = oozing adhesive 50 = label slides off 25 = label falls off 0 =label destroyed
Test Conditions Rating
Acetone 95
Isopropyl Alcohol 100
Bathroom cleaner 100
Glass cleaner 100
Sodium hydroxide 100
Hydrochloric acid 100
Nitric acid 100
Brake fluid 100
Water 100
Click Here to view PDF
