Project Description

Cable Barcode Labels simplify the task of marking cables, hoses, tubing, etc., by providing subsurface printing on one end with the clear part of the label wrapping around the pre-imaged information to provide additional protection.

The propylene construction allows the label to conform to a tight radius without unwinding.

REQUEST A QUOTE

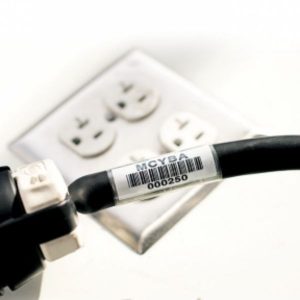

Cable Barcode Labels 1
Cable Bar Code Labels 1
Cable Bar Code Labels 2
Cable Barcode Labels 1 Cable Bar Code Labels 1 Cable Bar Code Labels 2
  • Subsurface printing protects against mild to moderate solvents, caustics, acids and mild abrasion while eliminating need for a laminate

  • Polypropylene construction allows the label to conform to a tight radius without unwinding

  • Clear part of label wraps around pre imaged information for additional protection

  • Digital printing process ensures barcode readability as well as crisp, clean company logos.

Specifications Data

Material .002” thick clear polypropylene
Barcode & Serialization Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a bar code product, we can produce it with human-readable numbers only or unserialized.
Label Copy The label copy may include block type, stylized type, logos or other designs
Colors Standard colors include black, red, yellow, green, blue, orange, purple, dark blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive .002″ thick low surface energy, pressure-sensitive adhesive. This adhesive provides excellent adhesion to plastic surfaces, uneven surfaces and even slightly oily surfaces.
Sizes 54mm x 127mm; 51mm x 280mm
Packaging Shipped on convenient rolls with scrap matrix removed for ease of removal. Cartons are clearly marked to indicate serial numbers of labels.
  • Asset Tracking

  • Audio Equipment

Temperature Test Data

Cable Barcode Labels are able to withstand intermittent heat exposure to 121°C.

Barcode Readability  Test Data

This rating measures bar code readability after being exposed to chemicals listed below for a 2-hour soak and a 24-hour soak.

Test Conditions 2-hour soak 24-hour soak
Water no effect no effect
Glass cleaner no effect no effect
Bathroom cleaner no effect no effect
Alcohol no effect no effect
Acetone no effect no effect
Sodium hydroxide no effect no effect

Label Adhesion Test Summary

This rating measures label adhesion after being exposed to chemicals listed below for a 2-hour soak and a 24 hour soak.

Test Conditions 2-hour soak 24-hour soak
Water no effect no effect
Glass cleaner no effect no effect
Bathroom cleaner no effect adhesive softened
Alcohol no effect no effect
Acetone no effect no effect
Sodium hydroxide no effect no effect
Nitric acid no effect adhesive softened
Click Here to view PDF
