DuraDestruct RFID Tags- Glass

A patent-pending product combines the durability of our standard RFID tag with destructible features that render the label useless if it is removed or tampered with. Its specialized construction for glass applications eliminates the transferability of the RFID tag and incorporates two levels of destructibility. If someone attempts to remove the tag the RFID antenna construction breaks into separate pieces making the read range of the tag mere inches. If a person tries to reassemble the tag to make it functional, the portion that is still adhered to will literally disintegrate if an attempt is made to remove it from the object.

Great for RFID tag and applications on car windshields where tag removal and re-application could be an issue.

DuraDestruct RFID Tags – Glass
Technical Data Sheet
Standard Size Type
76 × 19 × 0.44 mm UHF
DuraDestruct RFID Tags - Glass 1

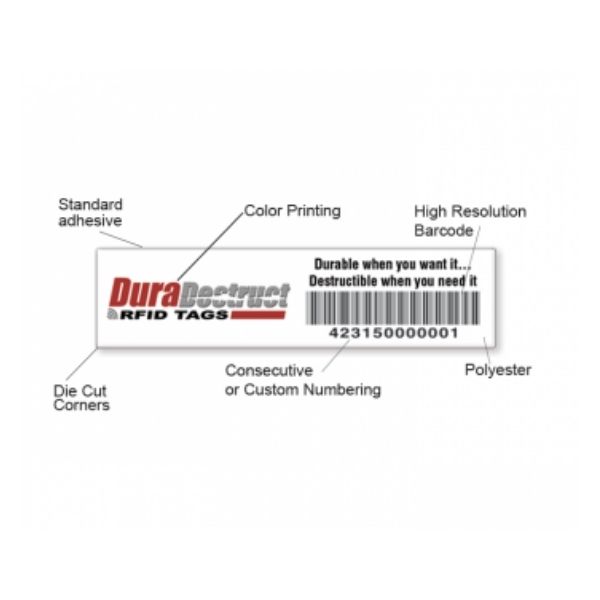

DuraDestruct RFID Tags - Glass 2

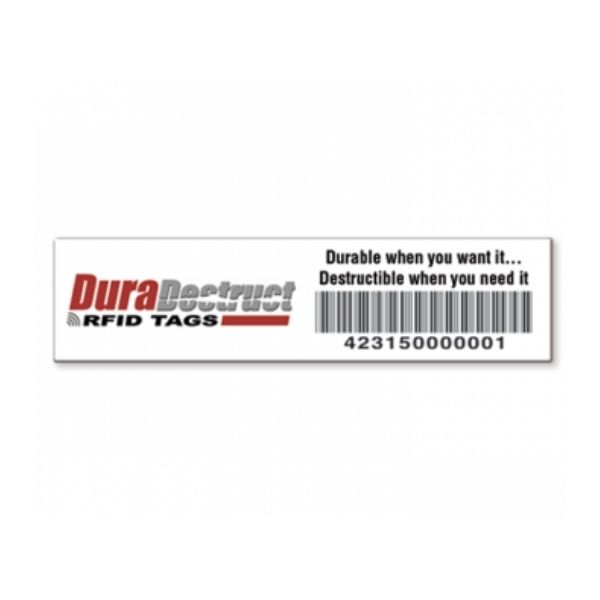

DuraDestruct RFID Tags - Glass 3
DuraDestruct RFID Tags - Glass 1 DuraDestruct RFID Tags - Glass 2 DuraDestruct RFID Tags - Glass 3
  • Ideal for security applications such as access control

  • Deters transferability as tag is rendered useless upon removal from the original surface

  • Read range up to 12 metres on glass

  • Custom printing and logos on tags available

  • Patent pending product

Material Polyester
Serialization Bar code and human-readable equivalent are produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 5.4 CPI (characters per inch). Optional symbology is Code 128.
Label Copy The label copy may include block type, stylized type, logos, or other designs.
Colors Standard colors include black, red, yellow, green, dark blue, orange, purple, or blue. Custom spot colors also are available at no additional charge. Because of contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive Pressure-sensitive acrylic adhesive
Frequency Range Worldwide UHF RFID Operation (840 – 960 MHz)
Sizes 76mm x 19mm
Packaging Produced and shipped in roll form
Shipment 14 business days
  • Non-metal surfaces

  • Windshields

Chemical Test Summary

Samples applied to glass panels, allowed to wet out for 72 hours, immersed in chemicals below at ambient room temperature conditions. Inlays in all samples still reading after 48 hours of exposure.
Key: NE = No effect; AO = adhesive ooze; PE = print erosion under laminate

Chemical Test Data

Water Salt Water 5% NaCI Bathroom Cleaner Glass Cleaner Windex Commercial Line Isopropanol Brake Fluid DOT 3 Acetone Diesel Fuel Nitric Acid pH 1.0 =/- 0.01 Hydrochloric Acid pH 1.0 =/- 0.01 Sodium Hydroxide pH 12.0 =/- 0.01
2 hours NE NE NE NE AO AO AO AO NE NE NE
24 hours NE NE NE NE AO AO AO AO NE NE NE
48 hours NE NE NE PE AO AO AO AO NE NE NE
Temperature Test Summary
Samples applied to glass panels at ambient room temperature conditions, sit for 72 hours, then placed in freezer set to -40°C for 24 hours. All inlays reading prior to removal from the freezer, all tags still destructible prior to removal from the freezer. Samples then exposed to each temperature noted below for 1 hour. All tags still destructible while at 93°C . Inlays quit reading after exposure to 204°C.
Key: NE = no effect; TD = Sample materials discolored; TP = Sample print degradation; TM = Tag melted/destroyed; SS = sample shrinking; adhesive ooze at edges.
Temperature Test Data
93°C 120°C 150°C 176°C 204°C 230°C 260°C
NE NE NE SS TD, SS TP, TD, SS TM

Read Range Test Data (metres)

DuraDestruct Voyanic Anechoic Chamber test results

Substrate ETSI FCC
Windshield glass 4.0 10.6
Tempered glass 6.0 9.0
Polypropylene 1.7 3.4
HDPE 1.4 2.5
Wood 1.5 3.0
Corrugated Paper 0.6 1.0

Abrasion Test Data

Tags survived 6,000 revolutions on Taber Abrader with CS-10 wheels, 1000g total load.
