Project Description

Idtracon’s Foil 2D Dot is an ideal identification solution for small parts tracking -specializing in extreme conditions where abrasion and high temperatures may be an issue.

The 2D DataMatrix ECC200 barcode symbology allows you to identify and track property as well as record calibration and maintenance information in one-tenth the space of traditional barcodes.

REQUEST A QUOTE

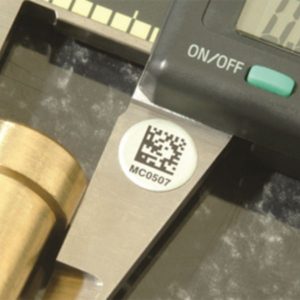

Foil 2D Round Metal Tags 1

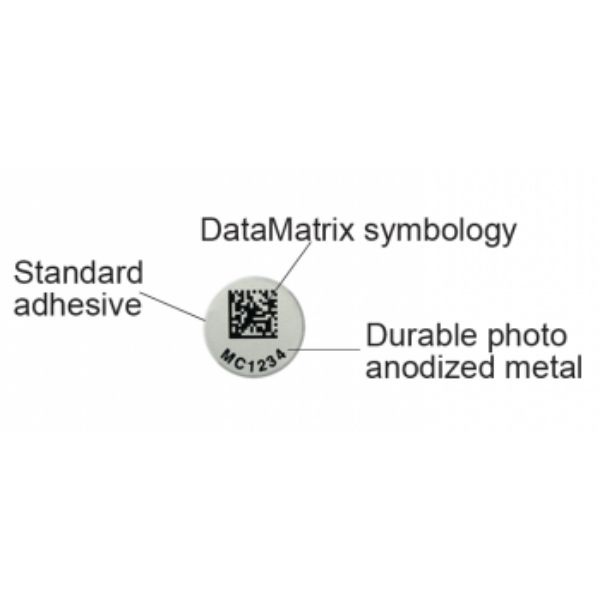

Foil 2D Round Metal Tags 2

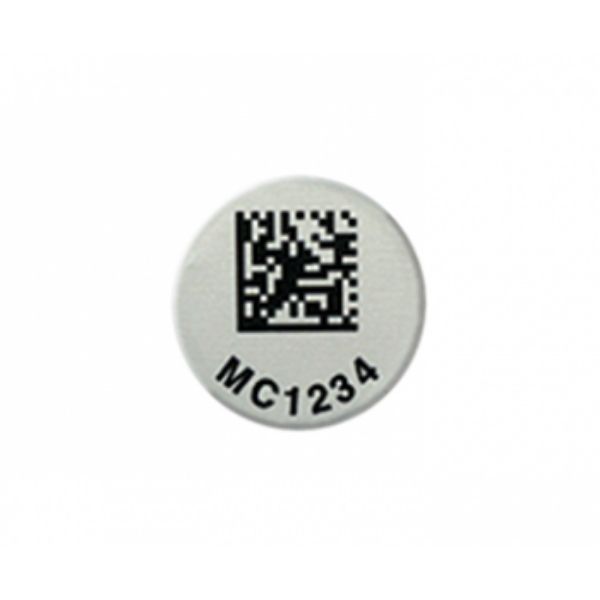

Foil 2D Round Metal Tags 3
Foil 2D Round Metal Tags 1 Foil 2D Round Metal Tags 2 Foil 2D Round Metal Tags 3
  • Small size makes label unobtrusive

  • Photo anodized aluminum resists abrasion, solvents, sun, salt air, and high temperatures

  • DataMatrix symbology utilizes only one-tenth the space of traditional barcodes

  • High redundancy in DataMatrix symbology means barcode will still read if as much as 60% of the image is destroyed

Specifications Data

Material .003″ thick matte anodized aluminum
Serialization All alphanumeric DataMatrix codes are photo imaged with a human-readable equivalent. Guaranteed no skips in sequence. Standard symbology is 2D DataMatrix ECC200, which includes the full set of ASCII characters. DataMatrix is a highly redundant barcode and is still readable if up to 60% of the barcode is destroyed.
Label Copy The label copy may include barcode and human-readable equivalent.
Colors Choose black copy with silver background or silver copy with black background.
Standard Adhesive Pressure-sensitive acrylic adhesive
Sizes 10mm x 10mm
Packaging Shipped 100 per sheet. Cartons are clearly marked to indicate serial numbers of contents. Pressure-sensitive adhesive orders are shipped with application tool and instructions.
Shipment 10 business days
  • IT Assets

Chemical Test Data

Characteristics Test Conditions Effect
Water/humidity no effect
Salt spray 5% at 35°C, 700 hours no effect
Ammonium hydroxide 2 hours at 1% and 5% Slight dulling of image, affects overall readability
Ethyl alcohol no effect
Ethyl acetate 24 hours no effect
Ferric chloride 10%, 16 hours no effect
Heptane 72 hours no effect
Hydrocarbon fluid no effect
JP-4 Fuel no effect
Kerosene no effect
Methyl Ethyl Ketone no effect
Nitric acid 1%, 40 hours no effect
Phosphoric acid 1%, 40 hours no effect
Skydrol no effect
Sodium hydroxide affects overall readability
Sulfuric acid 10%, 24 hours no effect
Turbine and jet fuel (MIL-L 5161C) (MIL-L 5161C) no effect
Tetra Sodium Pyrophosphate 1%, 40 hours no effect
Trisodium Phosphate no effect

Temperature Test

A label with an intensified image was tested for 265 hours at 260°C, 90 hours at 315°C, 60 hours at 370°C; reduced overall readability after these thresholds

Destructive Test Data

A label with an intensified image was tested in a weatherometer, 20 years equivalent; reduced overall readability after these thresholds

Abrasion Test Summary

A plate with an intensified image was brushed for 7,000 cycles with stiff nylon wheel (C-17) at a 1,000 gm (16 ox.) load; reduced overall readability after these thresholds
Click Here to view PDF
