Project Description

R FID Bale Tag is the ideal solution for tagging and tracking any type of
bale. Whether it’s for agricultural, cardboard, printing, recycling materials, fabrics or non-wovens, the RFID Bale tag can easily be attached to any type of bale. The tag’s polymer construction protects the text and RFID inlay from the  elements providing superior tag stability, durability and performance compared to other  paper based RFID tags.

The 5/16” nickel grommet gives additional  strength to the tag to ensure tags cannot tear away because of wind or weakening around the attachment point from moisture or  wear. Available in a wide variety of color’s,  each tag can be custom printed to meet any  design specification and provide high
contrast and visibility on any bale.

REQUEST A QUOTE
Click Here to view PDF
Standard Size Type
152 × 30 × 0.29 mm UHF
Read Range Memory
TBA m EPC: TBA | User: TBA
RFID Bale Tag

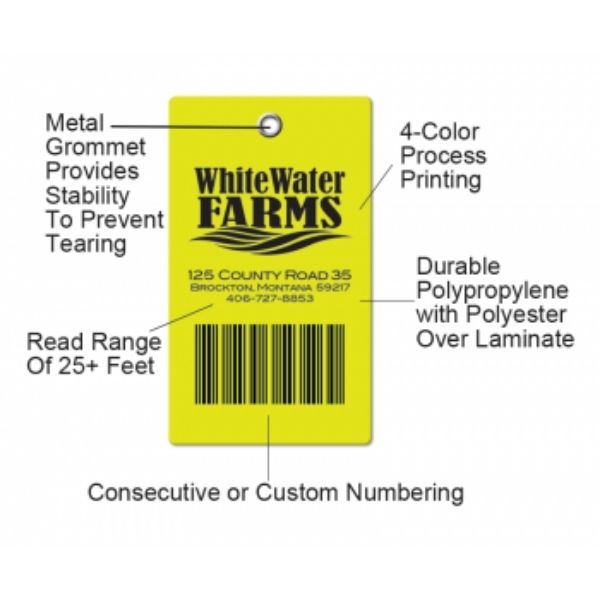

RFID Bale Tags 2

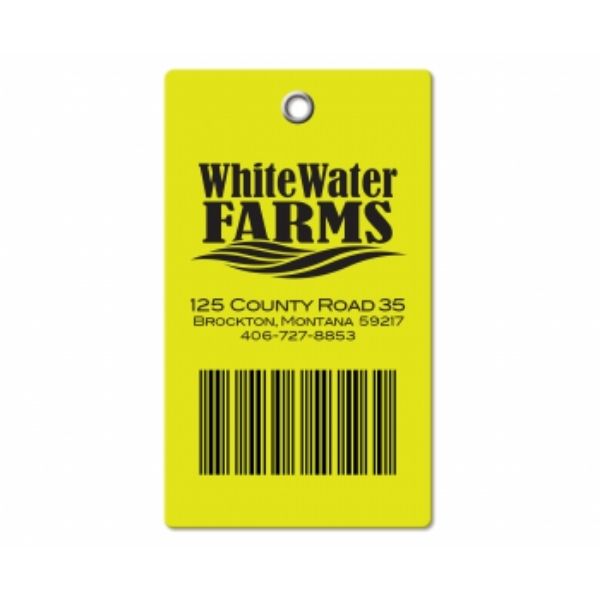

RFID Bale Tags 3
RFID Bale Tag RFID Bale Tags 2 RFID Bale Tags 3

  • Ideal for bale attachment and tracking

  • Removable and reusable – creates more ROI

  • Made of durable polymer materials

Specifications Data

Material .002” polypropylene, .001 polyester over laminate
Serialization Bar code and human-readable equivalent is produced using the latest high-resolution digital technology available, which provides excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional symbologies are available.
Label Copy The label copy may include block type, stylized type, logos or other designs
Colors Standard colors include black, red, yellow, green, dark blue, orange, purple or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive Hanging tag
Frequency Range 860-960 MHz
Sizes 152mm x 90mm
Packaging Shipped in “work-out- of” cartons for convenient application.
Shipment 14 business days

  • Barcode

  • Data Matrix

  • QR Code

  • RFID

  • Serial Number

  • Text

  • Abrasion Resistance

  • Chemical Resistance

  • Heat Resistance

  • UV/Outdoor Durability

  • Agriculture

  • Warehouse / Distribution Centers

  • Manufacturing

Chemical Test Summary

Chemical Soak Test Results (24 hours): Test of label structure and printed image as well as readability of inlay.

Chemical Test Data

Water Glass Cleaner Bathroom Cleaner Alcohol Acetone NaOH pH 12.0 HNO3 pH 1.0
no effect no effect no effect no effect Delaminated, inlay unreadable no effect no effect

Read Range Test Summary

In many cases the tags read intermittently for longer distances than those indicated, however, the results reported below were for continuously responding reads.

Read Range Test Data

Sample Metal Plastic Cardboard Wood Glass Free air
Average 4.50 meters 2.50 meters 2.50 meters 2.50 meters 3.60 meters 8.0 meters
