Project Description

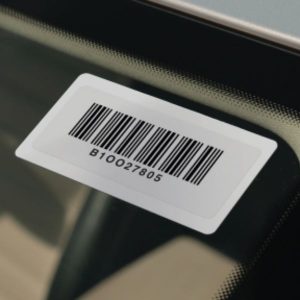

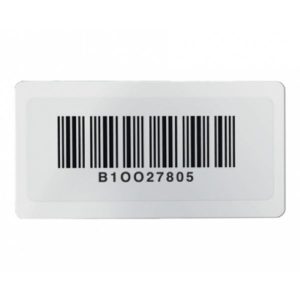

The onsite printable windshield tag is specifically designed to allow easy printing and encoding of RFID tags on-demand, providing a reliable, cost-effective solution for your RFID windshield tag needs.

The removable adhesive is perfect for those times you need a “temporary” tag – whether it’s for rental cars, rental equipment or controlling guest vehicle access to corporate facilities, gated communities or downtown parking lots – the onsite printable windshield tag offers an affordable option when you require a temporary tag that needs to be printed on-demand. Interior mount feature adds a layer of security to ensure the tag is not removed.

REQUEST A QUOTE
RFID On Site Printable Windshield Tags 1
RFID On Site Printable Windshield Tags 2
RFID On Site Printable Windshield Tags 3
RFID On Site Printable Windshield Tags 1 RFID On Site Printable Windshield Tags 2 RFID On Site Printable Windshield Tags 3

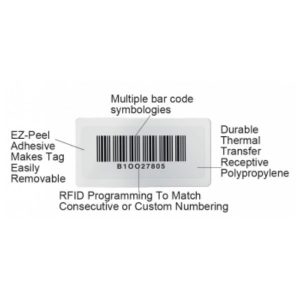

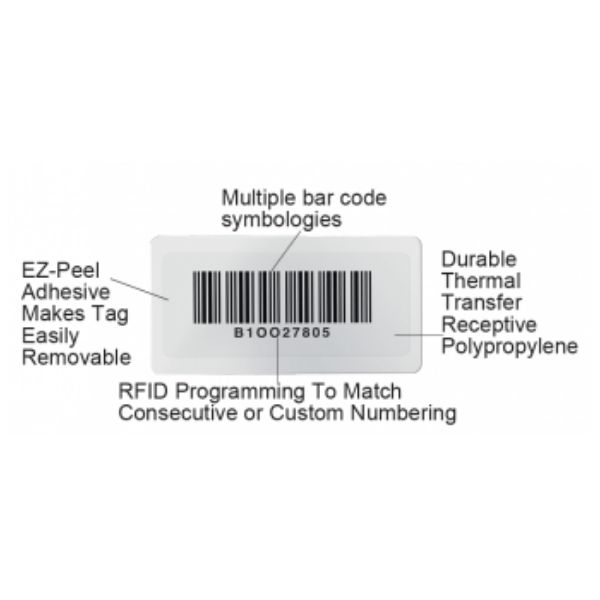

  • Specialized inlay reads well through windshield glass.

  • EZ-Peel adhesive makes tag easily removable while leaving no residue behind.

  • Designed for easy setup for printing and RFID encoding

  • Thermal transfer printer receptive

  • Ideal for use on rental cars, rental equipment and for controlling guest vehicle access to corporate facilities, gated communities or downtown parking lots

Specifications Data

Material 2.3 white mil polypropylene
Standard Adhesive EZ-Peel Removable adhesive.
Frequency Range UHF = 860-960 MHz; HF = 13.56 MHz
Sizes 110mm x 73mm
Packaging Shipped on convenient rolls
Shipment 15-25 business days
  • Access Control

  • Gated Communities

  • Vehicle Tracking

  • Waterparks

  • Zoos

Chemical Test Data

Samples applied to glass panels and immersed in Metalcraft standard chemicals with observations taken after 2, 24, and 48 hours.

Length of
immersion
5% salt water Glass cleaner Bathroom Cleaner Isop. Alcohol 99% Diesel fuel NaOH pH 12.0 HCI pH 1.0 Brake Fluid
2 hours NE Adhesion loss Adhesion loss adhesive ooze adhesive ooze NE NE NE
24 hours NE Adhesion loss Adhesion loss adhesive ooze adhesive ooze NE NE NE
1 Week NE Adhesion loss Adhesion loss adhesive ooze adhesive ooze surface corrosion surface corrosion NE

Temperature Test Data

Two tags were applied to glass panels at ambient room temperature conditions and placed in a freezer set to -28°C for 24 hours. Samples retained a good bond to the glass panels and removed easily while still in the freezer just prior to removal after 24 hours.

Tag inlays were still readable with the Alien ALH-9000 handheld reader post-exposure. Two tags were applied to glass panels and subject to 65°C, 80°C, and 93°C for 1 hour each. The tags retained a good bond to the panels, and no deterioration of the tags was observed.

Tag inlays were still readable with the Alien ALH-9000 handheld reader post-exposure.

Read Range Test Summary

Theoretical read ranges in the Voyantic anechoic chamber based on testing 5 samples using the Smartrac Dogbone R6 inlay.

Read Range Data

Glass Plastic
Sample average 12 metres 11.5 metres
Click Here to view PDF
