RFID Temperature Sensor Tags

T he ReadySense Passive RFID Temperature Sensor Tag is an easy-to-use, robust tag that outperforms other traditional temperature sensing tags.

The ReadySense Passive RFID Temperature Sensor Tags are much smaller, thinner, and more flexible than battery-powered sensors, and they are more cost-efficient than active wireless sensing tags. In fact, their low cost makes them useful for disposable and high-volume applications.

With the ability to access and collect quality data, ReadySense Passive RFID Temperature Sensor Tags enable users to consistently monitor temperatures and provide critical information to help make informed decisions.

RFID Temperature Sensor Tags
Standard Size Type
106 × 29 × 0.29 mm UHF
Read Range Memory
7.6 m EPC: 352 | User: 3072

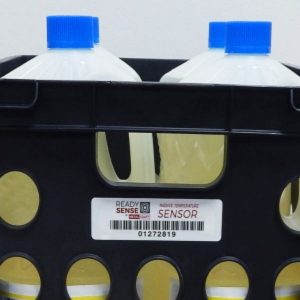

RFID Temperature Sensor Tags 1
RFID Temperature Sensor Tags 1
  • Specifically designed microchip to identify temperature

  • Can be affixed or embedded into most materials

  • Passive UHF

RFID temperature sensor tag product information

Material Polyester
Serialization Barcode and human-readable equivalent is digitally printed – providing excellent clarity and easy scanning. Code 39 is the standard symbology with a range of 2.7 to 9.4 CPI (characters per inch). Optional linear and 2D symbologies available. Although this product is primarily marketed as a barcode product, we can produce it with human-readable numbers only or unserialized.
Label Copy The label copy may include block type, stylized type, logos, or other designs
Colors Standard colors include black, red, yellow, green, or blue. Custom spot colors are also available at no additional charge. Due to contrast needed for the bar code scanner, all bar codes are black.
Standard Adhesive High-performance adhesive
Sizes 106mm x 29mm
Packaging Shipped on convenient rolls with scrap matrix removed for ease of removal. Cartons are clearly marked to indicate serial numbers of labels.
Shipment 20 business days
  • Cold chain

  • Greenhouses

  • Logistics

Chemical Test Summary

The ReadySense temperature tags were attached to a sheet of glass submerged in various chemicals. Observations were made at the following: 24 hours. A Motorola handheld RFID reader, as well as a handheld barcode reader, were used to test the samples.

Chemical Test Data

Length of Immersion Water Glass Cleaner Bathroom Cleaner Isopropyl Alcohol 99% Acetone NaOH pH 12.0 HNO3 pH 1.0 HCI pH 1.0 Brake Fluid
24 hours no effect no effect no effect no effect Tag delaminated, Tag no read no effect no effect no effect no effect
Temperature Test Summary
High-temperature resistance test: These tags were attached to a sheet of glass at raised temperatures for 15 minutes. Tags were then removed from the oven and tested for readability immediately. Low-temperature resistance test - The tags were attached to a sheet of glass and exposed to -40°C for 24 hours.
Tags were then checked for readability with an Alien ALH-9000 handheld RFID reader. All samples were readable while at temperature just prior to removal from freezer. No-tag construction defects were observed and adhesive still had a strong bond while in the freezer.
Temperature Test Data
Temperature RFID read test (after sample cooled to room temp.) Appearance of tags
93°C Reads well No change
149°C Reads well No change
204°C Reads well Tag distorted
260°C Reads well Tag destroyed

Read Range Test Data (metres)

ETSI UHF Band (865-868 MHz)
Free Air Cardboard Wood Plastic Glass Metal (requires 1.5mm thick foam in tag construction)
1.9m 2.2m 2.77m 3.2m 4.7m 0.75m
FCC UHF Band (902-928 MHz)
Free Air Cardboard Wood Plastic Glass Metal (requires 1.5mm thick foam in tag construction)
1.7m 2.12m 2.3m 3.25m 2.25m 1.1m
