Project Description

Universal On Site Printable Mini RFID Tag

T he On-Site Printable Universal Mini RFID tag is specifically designed to allow easy printing and encoding of RFID tags ondemand, providing a reliable, cost-effective solution for all your on-site printing RFID asset tag needs.

Whether your printer is located on the manufacturing floor or in a climate-controlled space, our On-Site Printable Universal Mini RFID tags have been constructed to reliably print and encode regardless of the printing location.

With a small footprint and low profile, these tags easily fit in smaller places and on assets where other tags may be too large. Developed using the same premise as our original Universal RFID Asset Tag, the tag utilizes a patented inlay design and passive RFID technology to obtain incredible read ranges on a variety of different materials – metal, plastic, and even wood.

Our customizable adhesive options allow you to pick the best attachment adhesive for your project ensuring your tags will stay in place throughout the tracking lifecycle.

The On-Site Printable Universal Mini RFID tag is also able to be shipped the next day for a quick turnaround for your onsite printing needs. Delivered in convenient 500-piece rolls that load easily into industry-leading industrial thermal transfer printers, like SATO & Zebra brands, the On-Site Printable Universal Mini is easy to set up configure and maintain.

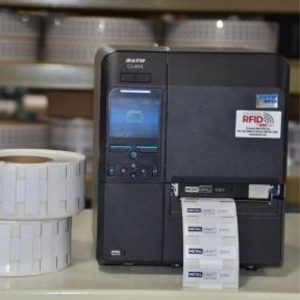

Universal On Site Printable Mini RFID Tag
Universal On Site Printable Mini RFID Tag

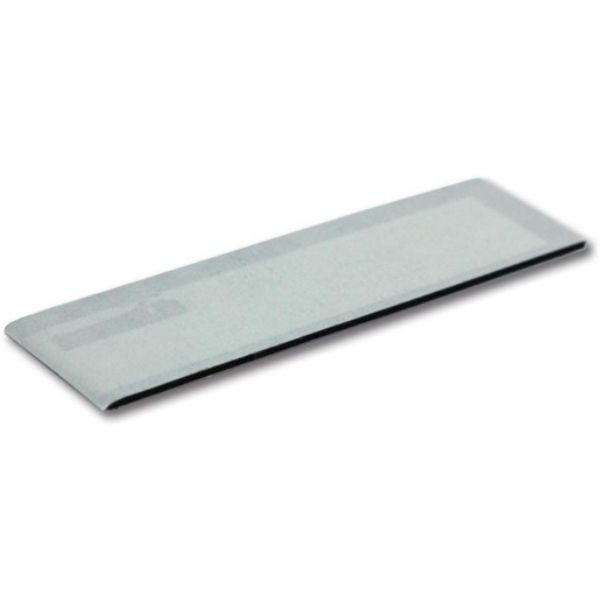

Onsite Printable Universal Mini RFID Tag 1
Onsite Printable Universal Mini RFID Tag 2
Universal On Site Printable Mini RFID Tag Onsite Printable Universal Mini RFID Tag 1 Onsite Printable Universal Mini RFID Tag 2
  • Smaller footprint and lower profile while still achieving excellent read range sets this product apart from others

  • Patented inlay design obtains excellent read ranges regardless of surface–metal, plastic, even wood

  • Designed for easy setup for printing and RFID encoding

  • Thermal transfer printer receptive

  • Available for Next Day Delivery

Specifications Data

Material Thermal transfer printable polyester substrate
Standard Adhesive Pressure-sensitive acrylic adhesive
Frequency Range Custom-designed UHF inlay optimized for use between 902 – 928 MHz. ( UHF, Class I Gen 2 )
Sizes 70mm x 19mm
Packaging Shipped in convenient 500-piece rolls that load easily into industry-leading industrial thermal transfer printers.
Shipment Next day shipping available depending on order quantity and inlay availability
  • Asset Tracking

  • Audio Equipment

  • Computers

  • Hospital Equipment

  • IT Assets

  • Laptops

  • Office Equipment

  • Tool Tracking

  • Work-In-Process

Chemical Test Summary

The Onsite Printable Universal Mini tags were attached to a sheet of glass submerged in various chemicals for a 3 week period. Observations were made at the following intervals: 2 hours, 24 hours, 1 week, 2 weeks, and 3 weeks. A Motorola handheld RFID reader was used to test the samples.

Chemical Test Data

Length of
immersion
Water Glass cleaner Bathroom cleaner Isopropanol Alcohol 99% Acetone NaOH pH 12.0 HCI pH 1.0 Brake Fluid
2 hours NE NE NE NE NE NE NE NE
24 hours NE NE NE NE NE NE NE NE
1 Week NE NE RFID tag read with
difficulty (significantly
lower hits/second)
No Read Tag structure
weakened
Tag
Detached
NE NE
2 Week NE RFID tag read with
difficulty (significantly
lower hits/second)
RFID tag read with
difficulty (significantly
lower hits/second)
No Read No Read Tag
Detached
No Read NE
3 Week Tag peeled easily Tag peeled easily No Read tag peeled
easily
No Read tag peeled
easily
No Read Tag
Detached
No Read tag peeled
easily
NE

High-temperature resistance test - These tags were attached to a sheet of glass at raised temperatures for 10 minutes. Tags were then removed from the oven and tested for readability immediately.

Low-temperature resistance test - The Onsite Printable Universal Mini tags were attached to a sheet of glass at low temperatures outdoors.

Tags were then checked for readability with a Motorola handheld RFID reader. Tags survived and were readable for 19 hours in Iowa winter conditions with temperatures between -21 to -26°F with no signs of failure.

Temperature Test Data

Temperature RFID read test (immediately out of oven) Appearance of tags
52°C Reads well No change
57°C Reads well No change
63°C Reads well No change
74°C Reads well Slight curling at edge
85°C Reads well Slight curling at edge
96°C Reads well Slight curling at edge
107°C Reads well Severe curling at edge - tag discolored
121°C Test failed Tag destroyed

Read Range Test Summary

In many cases the tags read intermittently for longer distances than those indicated, however, the results reported below were for continuously responding reads.

Read Range Test Data

Sample Metal Plastic Cardboard Wood Glass
Average 4.10 meters 2.07 meters 1.82 meters 2.94 meters 4.06 meters
